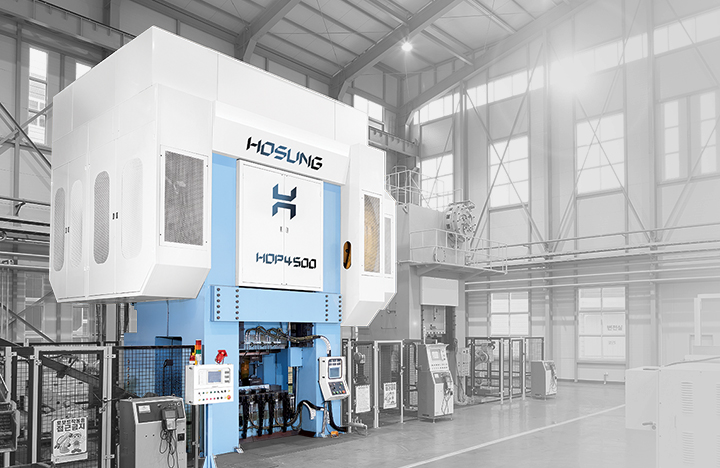

HDP Series Double-Drive Hot Forging Press

The HDP Series from HFM is a double-drive hot forging press range manufactured in Korea for CVJ, link, spindle and shaft forging.

Tie rods reinforce the rigid, integral frame to minimize elongation under load. Presses above 2,500 tons use a two-point pitman structure to help maintain accuracy under eccentric loads in multi-stage forging.

A high-precision slide and eight-surface adjustable guide gibs provide front-to-back and side-to-side guidance. The main and pinion gears of the double-drive system are designed to enhance torque capacity and energy efficiency. Available options include die handling, load monitoring, automatic transfer and automatic lubrication equipment.

Contact HFM about the HDP Series for press selection and available options.

HDP TECHNOLOGY

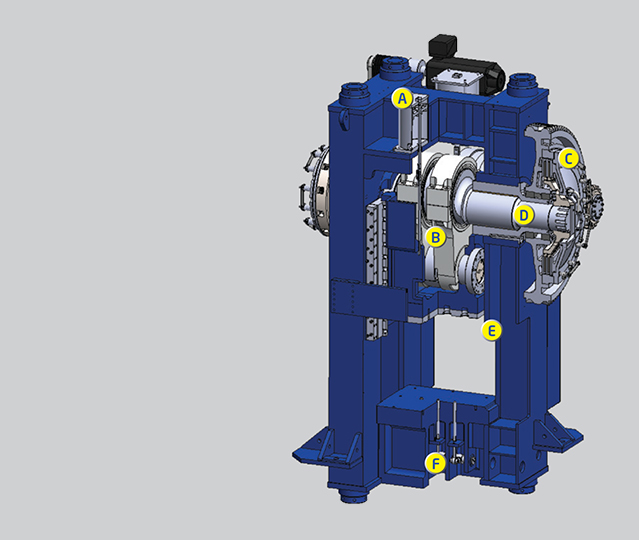

FRONT

A. Balance Cylinder
B. 2-Point Pitman
C. Clutch
D. Eccentric Shaft
E. 8-Surface Slide
F. Lower Ejector

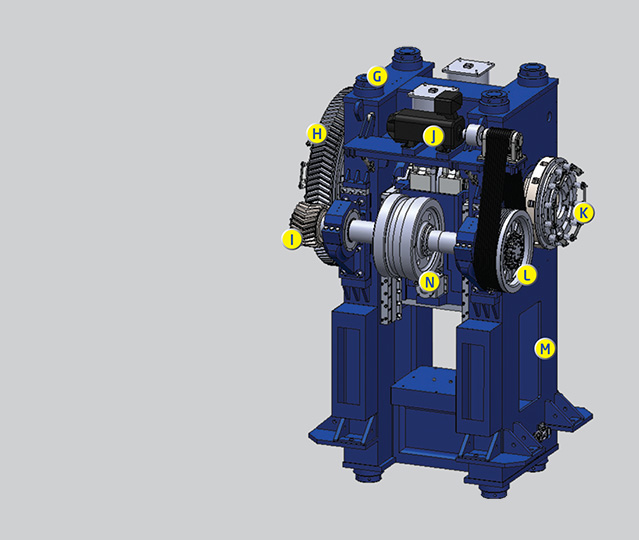

REAR

G. Tie Rod
H. Main Gear
I. Pinion Gear
J. Main Motor
K. Brake
L. Fly Wheel
M. Frame
N. Slide Adjust Device

* Illustration based on the HDP-4500. Shape and structure may vary by model.

SPECIFICATIONS

HDP Series hot forging press specifications
Type	HDP-1300	HDP-1600(STANDARD)	HDP-1600(WIDE TYPE)	HDP-2500(STANDARD)	HDP-2500(WIDE TYPE)	HDP-3000	HDP-3500	HDP-4000	HDP-4500	HDP-5000	HDP-6500
Capacity (ton)	1,300	1,600	1,600	2,500	2,500	3,000	3,500	4,000	4,500	5,000	6,500
Stroke (mm)	240	290	290	300	300	320	350	380	420	430	460
Strokes Per Minute (SPM)	85	75	75	70	70	70	65	60	55	50	50
Slide Area, LR x FB (mm)	860 x 970	1,000 x 1,050	1,200 x 1,150	1,200 x 1,250	1,600 x 1,250	1,500 x 1,300	1,600 x 1,300	1,600 x 1,450	1,600 x 1,450	1,720 x 1,600	1,860 x 1,700
Bed Area, LR x FB (mm)	1,130 x 1,050	1,130 x 1,250	1,510 x 1,250	1,510 x 1,250	1,870 x 1,250	1,770 x 1,350	1,870 x 1,350	1,870 x 1,500	1,870 x 1,500	1,990 x 1,650	2,130 x 1,750
Die Height (mm)	900	950	950	1,000	1,000	1,050	1,100	1,200	1,250	1,250	1,350
Slide Adjustment (mm)	8	10	10	10	10	10	10	10	10	12	12
Upper Ejector (mm)	15	20	20	20	20	20	20	20	20	20	20
Lower Ejector (mm)	50	60	60	60	60	70	80	80	100	100	100
Main Motor (kW)	90	150	150	175	175	190	200	220	240	280	320

OPTIONS

Die Set
Die Lifter Device
Q.D.C Device
Auto Transfer Device
Load Monitor
Auto Lubrication Device

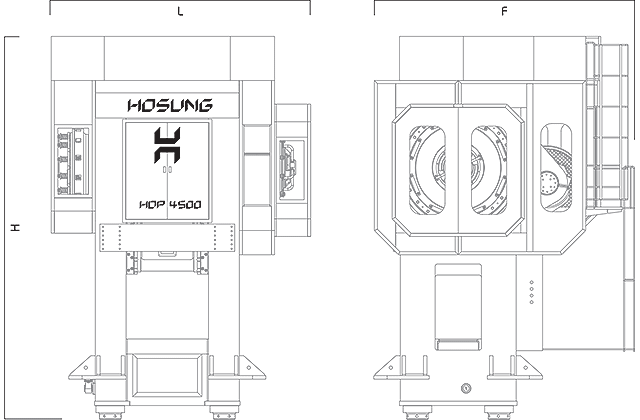

DIMENSIONS

HDP Series hot forging press dimensions
Type	HDP-1300	HDP-1600(STANDARD)	HDP-1600(WIDE TYPE)	HDP-2500(STANDARD)	HDP-2500(WIDE TYPE)	HDP-3000	HDP-3500	HDP-4000	HDP-4500	HDP-5000	HDP-6500
L (mm)	4,480	4,750	4,950	5,100	5,550	5,770	5,870	5,900	5,900	6,100	6,250
F (mm)	4,300	4,600	4,700	5,000	5,000	5,300	5,600	5,760	5,860	6,050	6,150
H (mm)	6,700	7,000	7,000	7,380	7,400	8,150	8,330	8,700	8,900	9,000	9,150

* Specifications are subject to change without prior notice.
