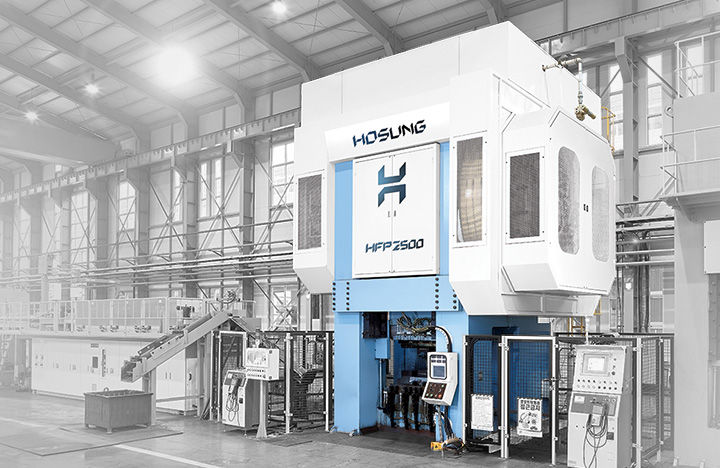

HFP Series Hot Forging Press

The HFP Series from HFM is a hot forging press range manufactured in Korea. Its direct-drive system is designed for a variety of forging applications.

Tie rods reinforce the rigid, integral frame to minimize elongation under load. A high-precision slide and eight-surface adjustable guide gibs provide front-to-back and side-to-side guidance for accurate forging.

The ring gear and gear-type clutch are designed to increase torque capacity, while the disc-type design helps minimize wear. Available options include a die set, Q.D.C. device, load monitor, die lifter, automatic transfer device and automatic lubrication device.

Contact HFM about the HFP Series for press selection and available options.

HFP TECHNOLOGY

FRONT

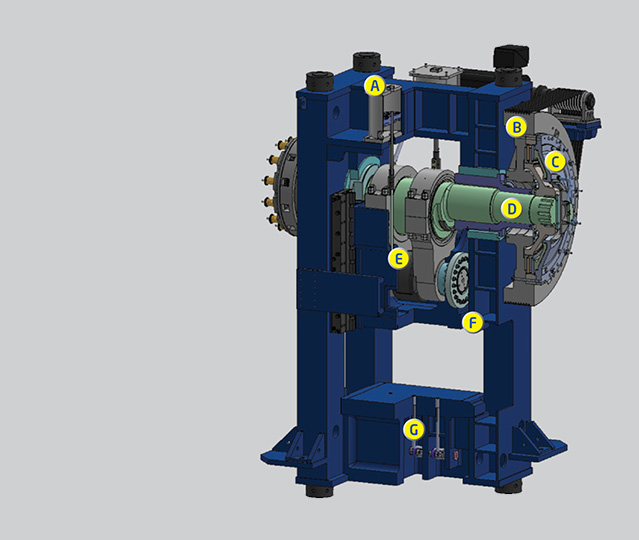

A. Balance Cylinder
B. Fly Wheel
C. Clutch
D. Eccentric Shaft
E. Pitman
F. 8-Surface Slide
G. Lower Ejector

REAR

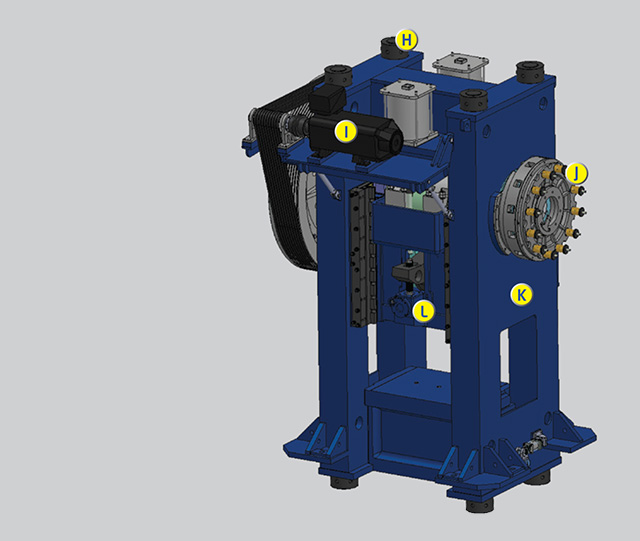

H. Tie Rod
I. Main Motor
J. Brake
K. Frame
L. Slide Adjust Device

* Illustration based on the HFP-2500. Shape and structure may vary by model.

SPECIFICATIONS

HFP Series hot forging press specifications
Type	HFP-600	HFP-750	HFP-1000	HFP-1300	HFP-1600	HFP-2000	HFP-2500
Capacity (ton)	600	750	1,000	1,300	1,600	2,000	2,500
Stroke (mm)	170	180	200	225	255	280	320
Strokes Per Minute (SPM)	105	100	100	95	85	80	75
Slide Area, LR x FB (mm)	660 x 680	720 x 780	760 x 870	860 x 970	1,000 x 1,050	1,150 x 1,150	1,200 x 1,250
Bed Area, LR x FB (mm)	820 x 880	930 x 900	1,030 x 1,050	1,130 x 1,050	1,310 x 1,250	1,510 x 1,250	1,510 x 1,250
Die Height (mm)	560	580	620	720	920	950	1,000
Slide Adjustment (mm)	6	8	8	8	10	10	10
Upper Ejector (mm)	10	10	15	15	20	20	20
Lower Ejector (mm)	40	40	45	45	50	60	60
Main Motor (kW)	37	45	55	75	110	150	175

OPTIONS

Die Set
Die Lifter Device
Q.D.C Device
Auto Transfer Device
Load Monitor
Auto Lubrication Device

DIMENSIONS

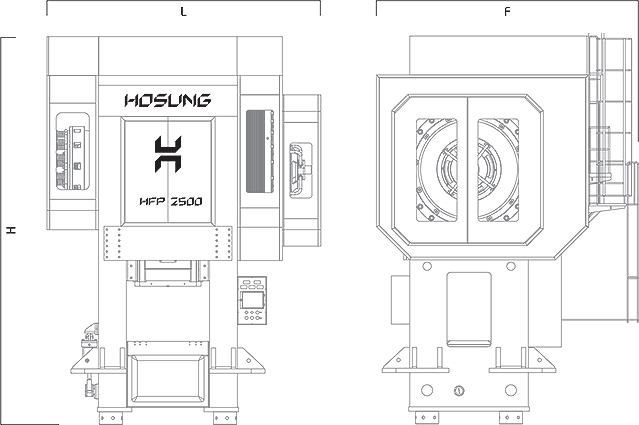

HFP Series hot forging press dimensions
Type	HFP-600	HFP-750	HFP-1000	HFP-1300	HFP-1600	HFP-2000	HFP-2500
L (mm)	3,470	3,780	4,020	4,250	4,750	5,050	5,100
F (mm)	2,700	2,900	3,200	3,420	3,600	3,950	4,210
H (mm)	4,050	5,000	5,450	5,800	6,900	7,030	7,200

* Specifications are subject to change without prior notice.
