HDP-Series

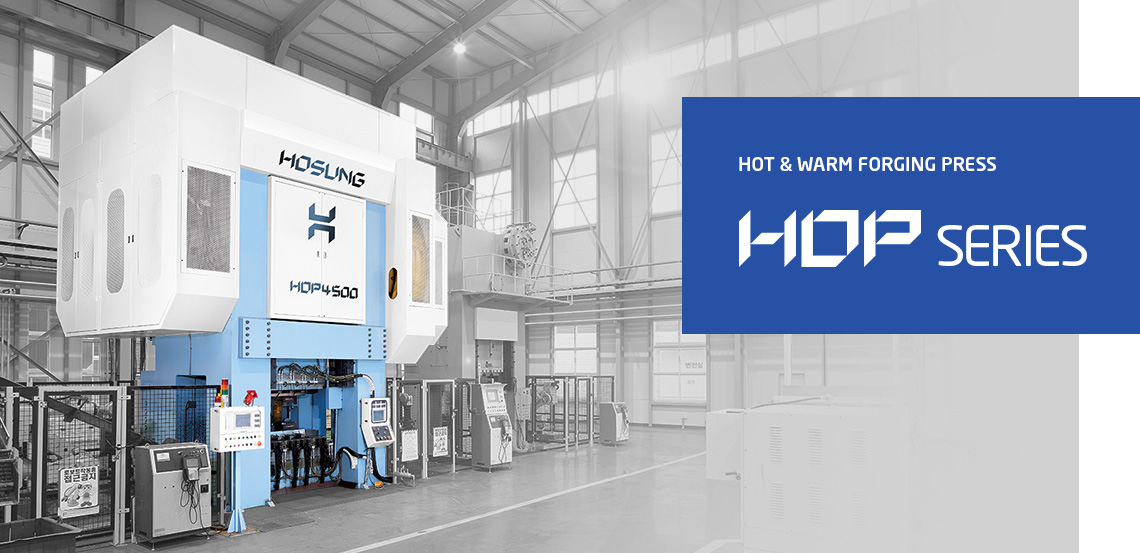

HDP Series

The HDP series is a hot forging press driven by double drive system that appropriate to produce CVJ, LINK, SPINDLE and SHAFT types of forging.
Tie rod is inserted into the high rigidity integral frame in a complete range of The HDP series that it makes intense power and minimizes elongation. The large forging presses over 2,500ton adopting two point structure of pitman can deliver products with high accuracy, even at a multiple process production line by reducing eccentric load the high precision slide and the 8-surface adjustable guide gib from front to back and side to side fulfilled the high preciseness of the products. Additionally, the main gear of double drive system and the pinion gear enhance improve torque capacity and maximize energy efficiency.

HDP TECHNOLOGY

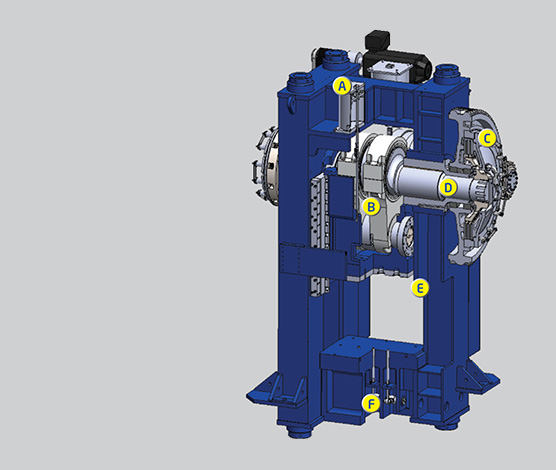

정면 FRONT
  • A.   Balance Cylinder
  • B.   2-Point Pitman
  • C.   Clutch
  • D.   Eccentric Shaft
  • E.   8-Surface Slide
  • F.   Lower Ejector
후면 REAR
  • G.   Tie Rod
  • H.   Main Gear
  • I.   Pinion Gear
  • J.   Main Motor
  • K.   Brake
  • L.   Fly Wheel
  • M.   Frame
  • N.   Slide Adjust Device

* The structure is based on the HDP-4500 depending on the model, the shape and structure may vary.

SPECIFICATIONS
HDP-series 사양
Type HDP-1300 HDP-1600(STANDARD) HDP-1600(WIDE TYPE) HDP-2500(STANDARD) HDP-2500(WIDE TYPE) HDP-3000 HDP-3500 HDP-4000 HDP-4500 HDP-5000 HDP-6500
Capacity (ton) 1,300 1,600 1,600 2,500 2,500 3,000 3,500 4,000 4,500 5,000 6,500
Stroke (mm) 240 290 290 300 300 320 350 380 420 430 460
Stroke Per Minute (SPM) 85 75 75 70 70 70 65 60 55 50 50
Slide Area, LR x FB (mm) 860 x 970 1,000 x 1,050 1,200 x 1,150 1,200 x 1,250 1,600 x 1,250 1,500 x 1,300 1,600 x 1,300 1,600 x 1,450 1,600 x 1,450 1,720 x 1,600 1,860 x 1,700
Bed Area, LR x FB (mm) 1,130 x 1,050 1,130 x 1,250 1,510 x 1,250 1,510 x 1,250 1,870 x 1,250 1,770 x 1,350 1,870 x 1,350 1,870 x 1,500 1,870 x 1,500 1,990 x 1,650 2,130 x 1,750
Die Height (mm) 900 950 950 1,000 1,000 1,050 1,100 1,200 1,250 1,250 1,350
Slide Adustment (mm) 8 10 10 10 10 10 10 10 10 12 12
Upper Ejector (mm) 15 20 20 20 20 20 20 20 20 20 20
Lower Ejector (mm) 50 60 60 60 60 70 80 80 100 100 100
Main Motor (kw) 90 150 150 175 175 190 200 220 240 280 320
OPTIONS
  • Die Set
  • Q.D.C Device
  • Load Monitor
  • Die Lifter Device
  • Auto Transfer Device
  • Auto Lubrication Device

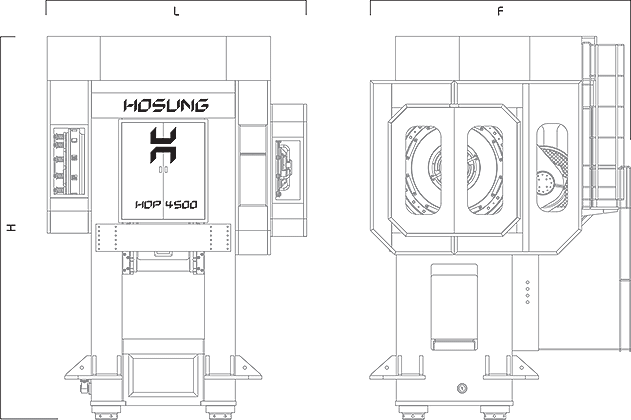

DIMENSIONS
HLM-series 외형치수
Type HDP-1300 HDP-1600(STANDARD) HDP-1600(WIDE TYPE) HDP-2500(STANDARD) HDP-2500(WIDE TYPE) HDP-3000 HDP-3500 HDP-4000 HDP-4500 HDP-5000 HDP-6500
L (mm) 4,480 4,750 4,950 5,100 5,550 5,770 5,870 5,900 5,900 6,100 6,250
F (mm) 4,300 4,600 4,700 5,000 5,000 5,300 5,600 5,760 5,860 6,050 6,150
H (mm) 6,700 7,000 7,000 7,380 7,400 8,150 8,330 8,700 8,900 9,000 9,150

* The specification of this machie can be modified without a prior notification.
