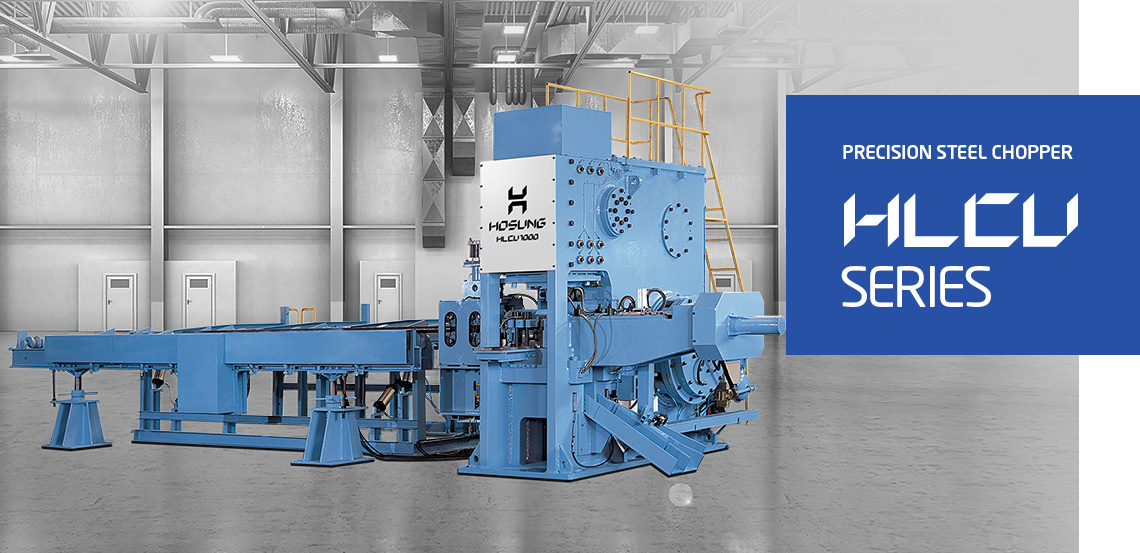

HLCU-Series

HLCU Series

The HLCU series driven by link type is a cutting machine suitable for cutting hot forging round bar. It has high rigidity of durability through a complete range of The HLCU series and provides supreme precision and high speed for cutting capability by applying Hosung's patent in technical skills such as link motion drive, pinch roller, and stopper into integral frame possessing convenience for changing cutting blade in a short time.

HLCU TECHNOLOGY

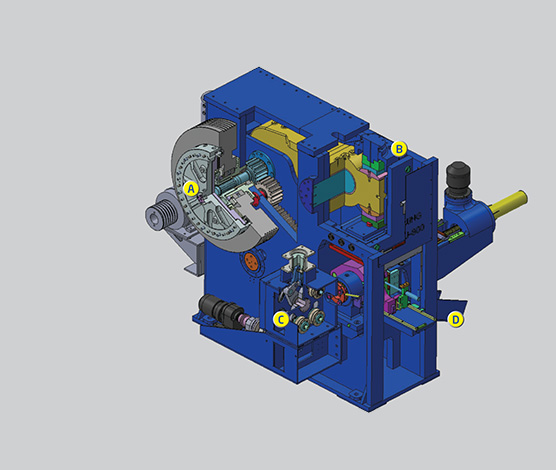

정면 FRONT
  • A.   Clutch
  • B.   8-Surface Slide
  • C.   Pinch Roller
  • D.   Chute

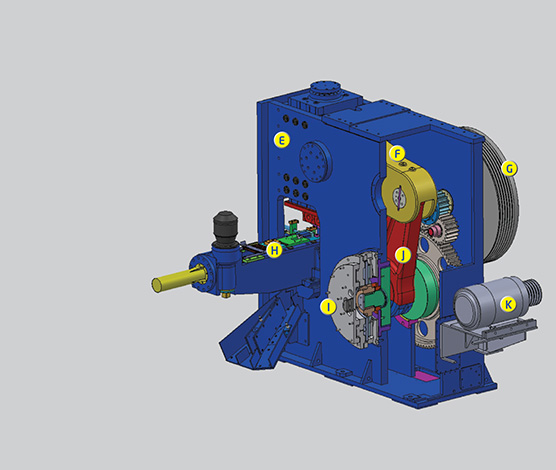

후면 REAR
  • E.   Frame
  • F.   Link-A
  • G.   Fly Wheel
  • H.   Stopper
  • I.   Brake
  • J.   Link-B
  • K.   Main Motor

* The structure is based on the HLCU-1000 depending on the model, the shape and structure may vary.

SPECIFICATIONS
HLCU-series 사양
Type HLCU-300 HLCU-450 HLCU-600 HLCU-800 HLCU-1000
Capacity (ton) 300 450 600 800 1,000
Stroke (mm) 90 105 120 130 140
Stroke Per Minute (SPM) 50 45 40 40 35
Feeding Speed (mm/min) 40 40 30 30 30
Main Motor (kw) 37 37 55 75 90
Cutting Die (mm) 19 ~ 70 25 ~ 75 40 ~ 90 50 ~ 100 60 ~ 130
Cutting Length (mm) 63 ~ 400 73 ~ 400 83 ~ 400 93 ~ 400 103 ~ 400
OPTIONS
  • Digital Auto Length & Dia Control Device
  • Auto Terminal / Initial unit
  • Auto Controller of Conveyor Elevation
  • Auto Hydraulic Clamp of Cutting Blade

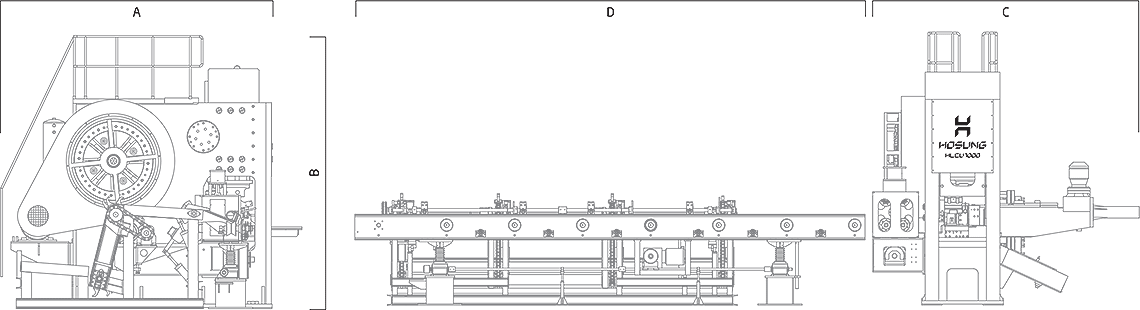

DIMENSIONS
치수
HCLU-series 외형치수
Type HLCU-300 HLCU-450 HLCU-600 HLCU-800 HLCU-1000
A (mm) 3,090 3,520 4,150 4,200 4,400
B (mm) 3,160 3,590 4,000 4,100 4,250
C (mm) 2,700 3,525 3,915 4,030 4,120
D (mm) 7,500 7,500 7,500 7,500 7,500

* The specification of this machie can be modified without a prior notification.
